ECGs by Example

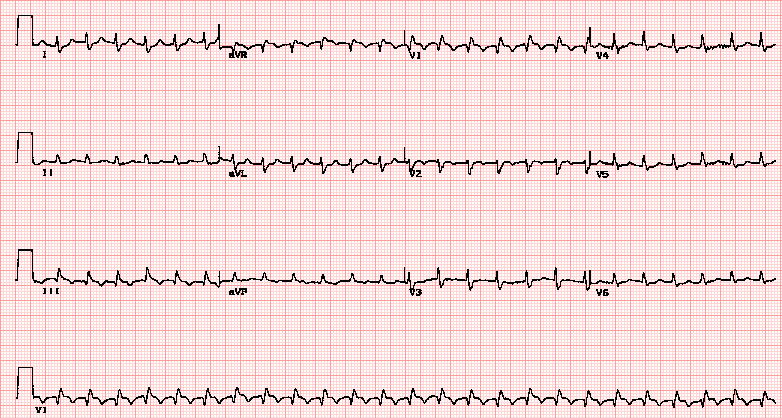

A 40 year old woman with pleuritic chest pain and breathlessness.
Acute pulmonary embolus
The following, often transient, changes may be seen in a large pulmonary embolus.
an S1Q3T3 pattern
a prominent S wave in lead I
a Q wave and inverted T wave in lead III
T wave inversion in leads V1 - V3
Right Bundle Branch Block
low amplitude deflections
